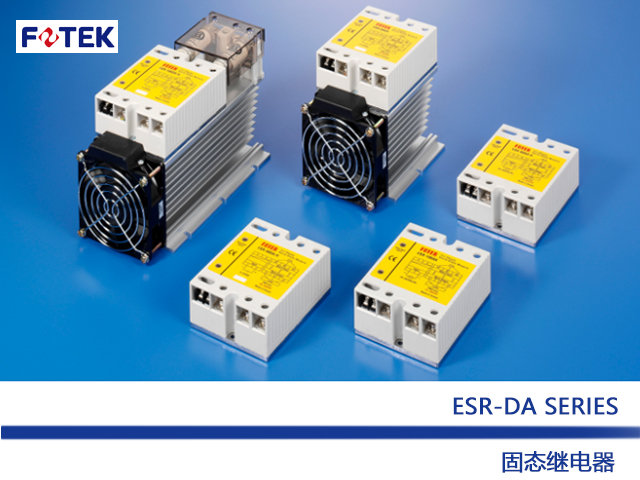

ESR-DA系列三相高功率固態模塊(可控硅模塊)

臺灣陽明ESR-DA系列三相高功率固態模塊(可控硅模塊)，產品有高電介強度超過4KV、高絕緣強度超過100MQ/500VDC、附過熱保護回路可防止過熱破壞、耐瞬間電流超過額定電流10倍以上、附雙重突波吸收回路有效防止突波破壞、符合EN60947-4-3 和 EN60950標準等特點，復雜惡劣工況環境可用，歡迎咨詢！

在線咨詢

產品詳情

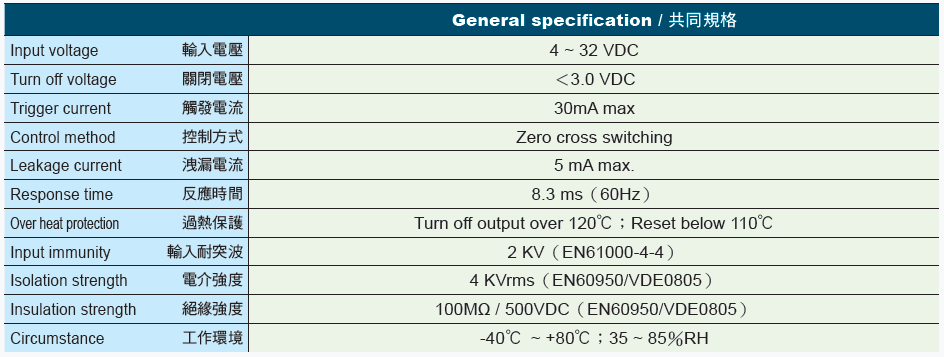

產品說明

1.高電介強度超過4KV

2.高絕緣強度超過100MQ/500VDC

3.附過熱保護回路可防止過熱破壞

4.耐瞬間電流超過額定電流10倍以上

5.附雙重突波吸收回路有效防止突波破壞

6.符合EN60947-4-3 和 EN60950標準

型號說明

產品型式	產品圖	產品型號	特點說明
標準型-DC to AC		ESR-25DA	輸入電壓:4~32VDC、輸出電壓:24~380VAC、額定電流:25A max.
		ESR-40DA	輸入電壓:4~32VDC、輸出電壓:24~380VAC、額定電流:40A max.
		ESR-60DA	輸入電壓:4~32VDC、輸出電壓:24~380VAC、額定電流:60A max.
		ESR-80DA	輸入電壓:4~32VDC、輸出電壓:24~380VAC、額定電流:80A max.
		ESR-100DA	輸入電壓:4~32VDC、輸出電壓:24~380VAC、額定電流:100A max.
高壓型-DC to AC		ESR-25DA-H	輸入電壓:4~32VDC、輸出電壓:90~480VAC、額定電流:25A max.
		ESR-40DA-H	輸入電壓:4~32VDC、輸出電壓:90~480VAC、額定電流:40A max.
		ESR-60DA-H	輸入電壓:4~32VDC、輸出電壓:90~480VAC、額定電流:60A max.
		ESR-80DA-H	輸入電壓:4~32VDC、輸出電壓:90~480VAC、額定電流:80A max.
		ESR-100DA-H	輸入電壓:4~32VDC、輸出電壓:90~480VAC、額定電流:100A max.

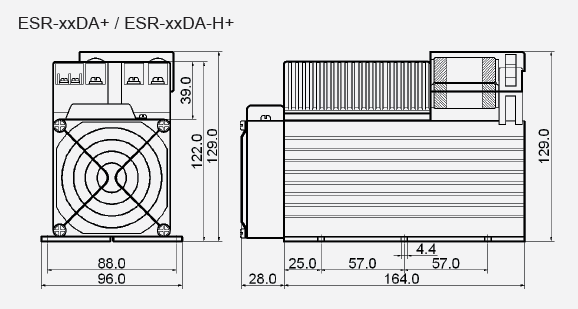

標準型-DC to AC(含風扇+FUSE)		ESR-4ODA+	輸入電壓:4~32VDC、輸出電壓:24~380VAC、額定電流:40A
		ESR-60DA+	輸入電壓:4~32VDC、輸出電壓:24~380VAC、額定電流:60A
		ESR-80DA+	輸入電壓:4~32VDC、輸出電壓:24~380VAC、額定電流:80A
		ESR-10ODA+	輸入電壓:4~32VDC、輸出電壓:24~380VAC、額定電流:100A
高壓型-DC to AC(含風扇+FUSE)		ESR-4ODA-H+	輸入電壓:4~32VDC、輸出電壓:90~～480VAc、額定電流:40A
		ESR-60DA-H+	輸入電壓:4~32VDC、輸出電壓:90~480VAC、額定電流:60A
		ESR-80DA-H+	輸入電壓:4~32VDC、輸出電壓:90~480VAc、額定電流:80A
		ESR-10ODA-H+	輸入電壓:4~32VDC、輸出電壓:90~480VAC、額定電流:100A
